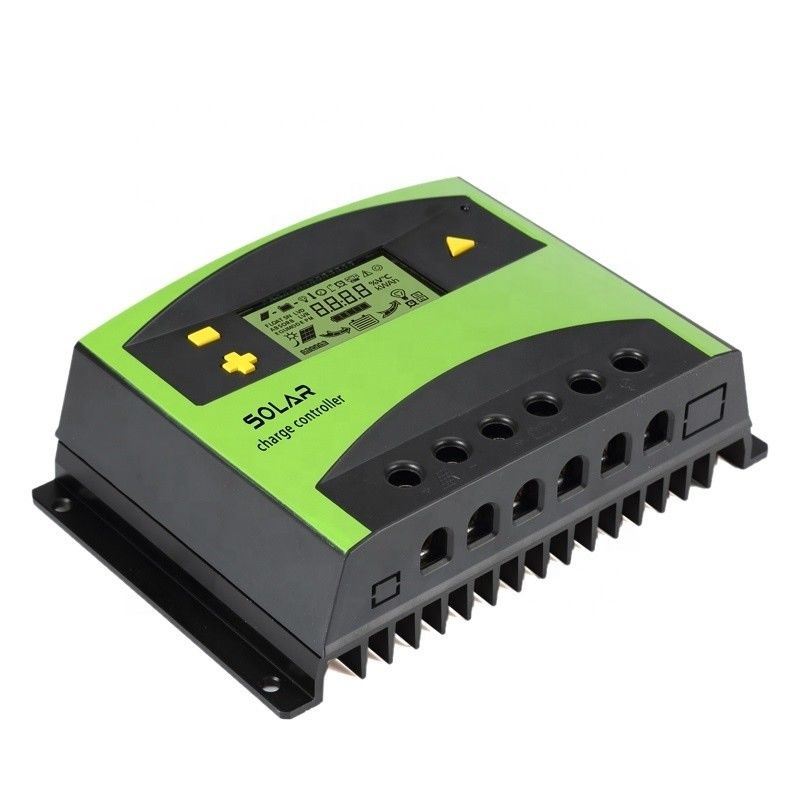

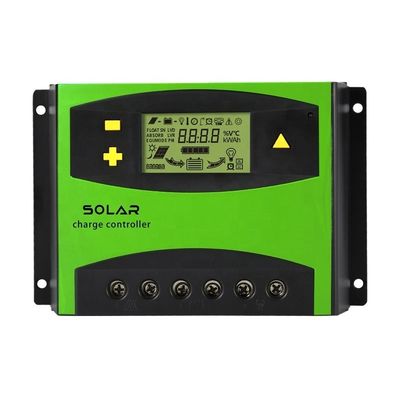

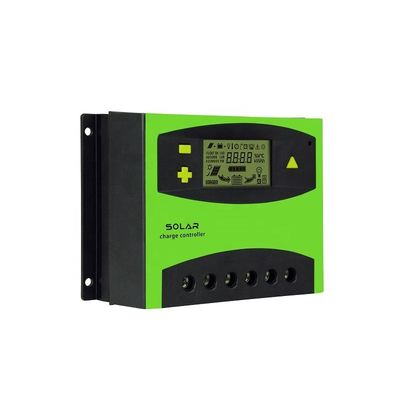

24V 12V PWM 60a Solar Charge Controller 30A PWM Solar Regulator

Name: 24V 12V PWM 60a Solar Charge Controller 30A PWM Solar Regulator
Brand: Shenzhen ShengShi TianHe Electronic Technology Co., Ltd.
SKU: SZSSTH-MN1230, PWM
Price: 50.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: SZSSTH/OEM

Model Number: SZSSTH-MN1230, PWM

Payment & Shipping Terms

Price: CN¥124.27/pieces 1-99 pieces

Packaging Details: Packing: gift box
Quantity/carton: 50pcs in one carton

Supply Ability: 2500 Piece/Pieces per Week

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                12V PWM  60a Solar Charge Controller, 24V PWM 60a Solar Charge Controller, 30A PWM Solar Regulator


Type:	PWM	Application:	Charger Controller, Voltage Controller, Solar System Controller, Charger Controller
Work Time (h):	24h	Max PV Power:	1050w
Max PV Voltage:	100v	Rated Voltage:	12v 24v
Maximum Current:	30A	Warranty:	1 Years, 1 Year
Weight:	780g	Color:	Green
Product Name:	Solar Charge Controller Module	Keywords:	Solar Charge Controller 30a
Certificate:	CE ROHS	Port:	Yantian Or Shekou

Type:	PWM
Application:	Charger Controller, Voltage Controller, Solar System Controller, Charger Controller
Work Time (h):	24h
Max PV Power:	1050w
Max PV Voltage:	100v
Rated Voltage:	12v 24v
Maximum Current:	30A
Warranty:	1 Years, 1 Year
Weight:	780g
Color:	Green
Product Name:	Solar Charge Controller Module
Keywords:	Solar Charge Controller 30a
Certificate:	CE ROHS
Port:	Yantian Or Shekou

24V 12V PWM 60a Solar Charge Controller 30A PWM Solar Regulator

Product Description

Specification

Wholesale solar charge controller 24V 12V 10 amp 20A 30A 40A 50A 60a pwm solar charge controller

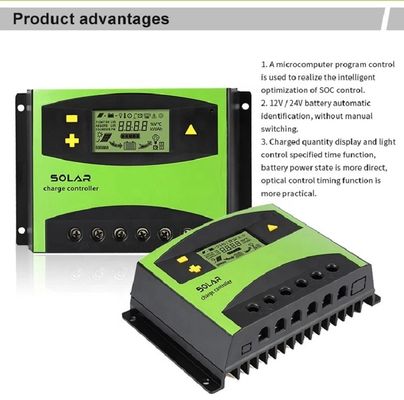

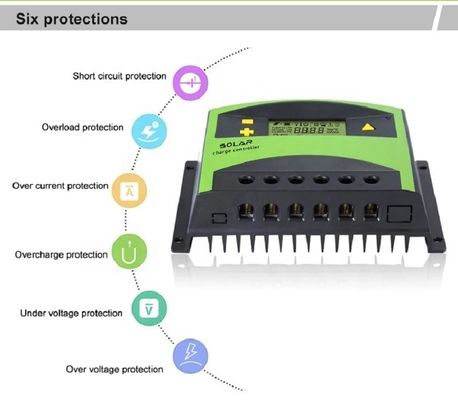

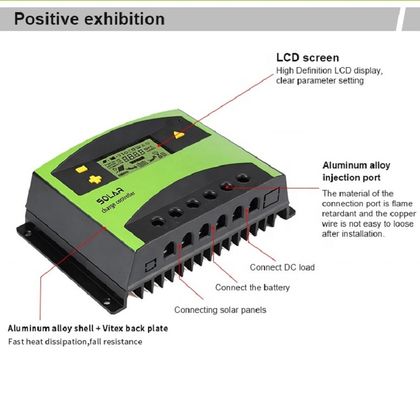

Product Features: 1. voltage automatic identification system. 12v/24v or 24v/48v automatic identification. 2.LCD dispaly and dual USB output. 3.Efficient smart PWM three charging. 4.Reliable protection: overvoltage, shor circuit, overload, overcharge, over discharge protection function.

Model	20A	30A	40A	50A	60A
System voltage	12V/24V, 24V /48V (Automatically switch)
The Maximum voltage of the solar panel input	50V (12/24V) ,100V (24V/48V)
Self loss	<13mA
Maximum charge current	20A	30A	40A	50A	60A
Maximum discharge current	20A	30A	40A	50A	60A
LVD	10.5V (9-11V), 21V (18V-22V), 42V (36V-44V)
LVR	12.6V(11-13.5V), 25.2V( 22-27V), 50.4V( 45-54V)
Battery overpressure protection	15V /30V /60V
Charging mode	PWM
Terminal scale	28-10 AWG
Waterproof level	IP32
Product size	1879047mm			19510750mm	18712257mm
Packing size	20010253mm			21011859mm	20013263mm
Weight	780g					850g

Packing & Delivery

Package

Packing: box

1pcs in one box

PCS/CTN:50PCS

The total net weight: 16kgs

The total gross weight:17kgs
