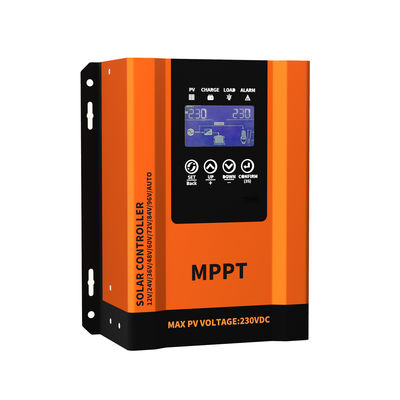

Smart MPPT Solar Charge Controller 60A 12V-96V With Overvoltage Protection

Name: Smart MPPT Solar Charge Controller 60A 12V-96V With Overvoltage Protection
Brand: Shenzhen ShengShi TianHe Electronic Technology Co., Ltd.
SKU: SSTH-60
Price: 752.42 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: SZSSTH

Model Number: SSTH-60

Payment & Shipping Terms

Price: CN¥618.42-886.70/pieces

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Smart MPPT Solar Charge Controller 60A, Smart MPPT Solar Charge Controller 12V, Overvoltage Protection  mppt charge controller


Type:	MPPT	Application:	Charger Controller, Voltage Controller, Solar System Controller, Charger Controller, Solar Working Station,
Work Time (h):	24 Hours	Max PV Power:	Auto Tracking The Max Power
Max PV Voltage:	230V	Product Name:	MTTP Controller 30A 40A 50A 60A
Rated Current:	30A 40A 50A 60A	Rated Voltage:	12V 24V 36V 48V 60V 72V 84V 96V Auto Work
Display:	LCD Display With Touch Button	MPPT Efficiency:	97%
Maximum Current:	30A 40A 50A 60A	Protection Level:	IP 21
Charge Mode:	MPPT Automatic Max Power Tracking

Type:	MPPT
Application:	Charger Controller, Voltage Controller, Solar System Controller, Charger Controller, Solar Working Station,
Work Time (h):	24 Hours
Max PV Power:	Auto Tracking The Max Power
Max PV Voltage:	230V
Product Name:	MTTP Controller 30A 40A 50A 60A
Rated Current:	30A 40A 50A 60A
Rated Voltage:	12V 24V 36V 48V 60V 72V 84V 96V Auto Work
Display:	LCD Display With Touch Button
MPPT Efficiency:	97%
Maximum Current:	30A 40A 50A 60A
Protection Level:	IP 21
Charge Mode:	MPPT Automatic Max Power Tracking

Smart MPPT Solar Charge Controller 60A 12V-96V With Overvoltage Protection

Smart MPPT 30A 40A 50A 60A High Voltage AUTO 12V 24V 36V 48V 60V 72V 84V 96V Solar Charge Controller

PRODUCT			MPPT SOLAR CONTROLLER
Model			30A	40A	50A	60A
Charging Mode			MPPT automatic maximum power tracking
Charging Method			MPPT tracks maximum power, fast chargebalanced charge, and float charge
BatteryType	Lead Acid	Single voltage 3.2 number of strings(strings-45 strings adjustable)
		Gel	Single voltage 3.7 number of strings(2strings-45 strings adjustable)
		LifePo 4	Adjustable limit voltage for equal chargefloat charge and DC discharge: 8V-170V
		Li-ion	With photovoltaic input, there is charging voltage(activate lithium battery), can be used without battery DCoutput
		USER	0-230V
With lithium battery activation function			With photovoltaic input, there is charging voltage(activate lithium battery), can be used without battery DC output
PV maximum open circuit input voltage			0-230V
Max.pv Input Power			12V-18V540W	12V-18V720W	12V-18W900W	12V-18W1080W
				24V-36V1080W	24V-36V1440W	24V-36V1800W	24V-36V2160W
				36-54V1620W	36V-54V2160W	36V-54V2700W	36V-54V3240W
				48V-72V2160W	48V-72V2880W	48V-72V3600W	48V-72V4320W
				96V-144V4320W	96V-144V5760W	96V-144V7200W	96V-144V8640W
Product size			202215100mm	202215100mm	218265100mm	218265100mm
NWJG.W			30A NW:19KGG.W2.2KG	40A:N.W1.9KGG.W2.2KG	50A:NW2.6KGG.W3KG	60A: NW2.6KGG.W3KG

MPPT controllers offer a wide range of battery compatibility, easily connecting to lead-acid, lithium iron phosphate, and lithium batteries, giving you more flexibility in your energy choices. Regardless of your energy needs, MPPT controllers provide you with more energy freedom and more choices!

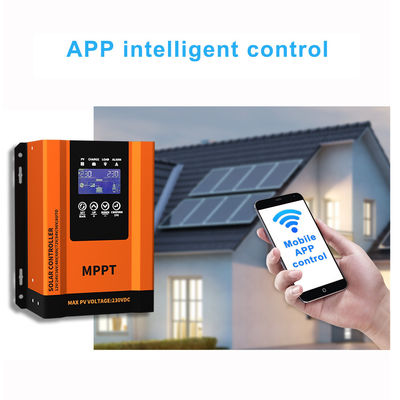

The MPPT Controller not only ensures efficient energy conversion but also features integrated WIFI connectivity for real-time monitoring and remote control, offering a smarter and more convenient way to manage your energy resources.

MPPT controller, thoughtful multiple protection programs, to provide a full range of security for your energy system, so that you can use more assured, peace of mind to enjoy the convenience of clean energy and reliable

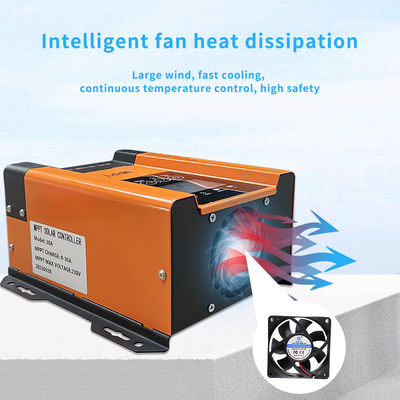

The MPPT controller is equipped with a smart fan cooling system to efficiently reduce temperature and ensure continuous system operation, providing excellent performance and stability for your energy management. Not only smart, but also efficient

More Than 30,000 Customers Are Attracted By Our Company, Because We Strictly Control The Installation And Inspection Of Electrical Products Before Leaving The Factory And The Test Before Delivery, So That We Can Do The Best We Can, So That Our Customers Can Use Our Products At Ease

We Have Passed ROHS Certification, CE Certification, BSCI, Alibaba Vertified Certification And Design Patent And Other International Certifications. Strictly Control Materials, Processing, Assembly, Debugging, Testing, Packaging, Transportation And Other Links To Ensure The Performance And Quality Of Electrical Products

Rated Products

Q1: I would like to test the sample, but the shipping cost is too high, how to proceed to the next step? A1: This is just the sample order, we have already offered the best cost. It would be some kind of high on shipping, while it worth it -- checking the real quality of goods, and making sure it is the right one we need. For our bulk order, we can choose a better delivery method like sea delivery, unit shipping cost would be greatly lower. All we wish is long-time business,win-to-win. Q2: If our client wants to use a power inverter for the lithium battery, would it be possible? A2: Our power inverter voltage range is set according to standard Lead-acid batteries, it would be some kind of difference from the lithium battery parameter. Pls show us your exact parameter of yours, then our Engineer will specially customize them for you in our factory. Q3:Do you accept OEM service? A3: Yes, We support OEM/ODM service. Q4: Can I take a sample for a test? A4: Yes, a Sample is available for us. Q5: How do I pay you? A5: We accept Alibaba Insurance order, It support T/T, Credit card, Paypal, Western Union, etc method. Q6: What kind of warranty for your product? A6:We provides one year warranty. Q7:What is your terms of payment? A7: T/T 30% as deposit, and 70% balance before shipment. Q8: What are your terms of delivery? A8: EXW, FOB, CFR, CIF, DDU.DDP Q9:Can you print our brand on the product? A9: Yes, We can. The MOQ:50PCS. Remark: For the 150w /300w inverter (Red color dc 12v to ac 110v ), We can print your logo on the product for free. Q10: How much does the shipping cost? A10: Can you tell me how many pcs do you need? Please also send me your shipping address and zip code. Then I check how much the shipping cost was.
