3KW Pure Sine Wave Inverter Bidirectional Grid Connected Inverter With LCD Display

Brand Name: SZSSTH/OEM
Model Number: RA
MOQ: 5 pieces
Price: $175.00-$193.00/pieces
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Document:
EN RA 2KW 3KW Bidirectional...1).pdf
Network:
SDK
Type:
DC/AC Inverters
Output Type:
DUAL
Output Current:
Load
Output Frequency:
50Hz/60Hz
Size:
241*345*121 Mm
Weight:
6.1KG
Output Waveform:
Prue Sine Wave
Rated Power:
2000W/3000W
Peak Power:
4000W/6000W
Charging Current:
100A (Adjustable)
Frequency:
50/60 HZ
Shell Material:
Lron
Applicable Battery Type:
Lead Acid/LiFePO4/NCM Batteny
Charging Method:
Constant Current/constant Voltage (CC/Cv)
Cooling Method:
Air Cooling
Operating Temperature:
-10℃~+45℃
Warranty:
12 Months
Highlight:

3KW Pure Sine Wave Inverter bidirectional

,

Inverter bidirectional with LCD Display

,

3KW bidirectional grid connected inverter

Product Description
3KW Pure Sine Wave Inverter Bidirectional Grid Connected Inverter With LCD Display
Premium Pure Sine Wave Inverter for Reliable Power Conversion

This 3000W bi-directional power inverter combines high-efficiency energy conversion with a built-in 100A battery charger, making it ideal for solar systems, home backup, RVs, and off-grid applications.

Key Features & Benefits
  • 3000W Pure Sine Wave Output - Delivers clean, stable power for sensitive electronics (laptops, medical devices, appliances)
  • Bi-Directional Functionality - Works as both an inverter (DC to AC) and charger (AC to DC) for seamless energy management
  • Built-in 100A Smart Charger - Fast battery charging with automatic voltage detection (compatible with lead-acid/LiFePO4 batteries)

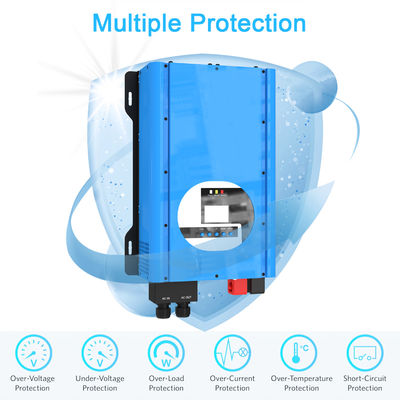

  • Multi-Protection System - Overload, short-circuit, over-temperature, and reverse polarity protection for safety
  • Wide Input Voltage (12V DC to 220V AC) - Supports flexible power sources (solar panels, batteries, grid)

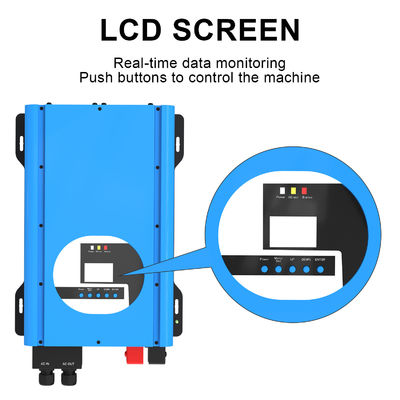

  • LCD Display (Optional) - Real-time monitoring of voltage, current, and battery status (if model includes display)
Ideal Applications
  • Solar Power Systems - Efficiently converts solar energy for home/off-grid use
  • Home & Office Backup - Keeps essential devices running during blackouts
  • RV & Marine Use - Reliable power for travel, camping, and boats
  • Emergency Power Supply - Works as a UPS (Uninterruptible Power Supply) for critical loads
Technical Specifications
Attribute Value
Network SDK
Type DC/AC Inverters
Weight 6.1KG
Charging Method Constant current/constant voltage (CC/Cv)
Cooling Method Air Cooling

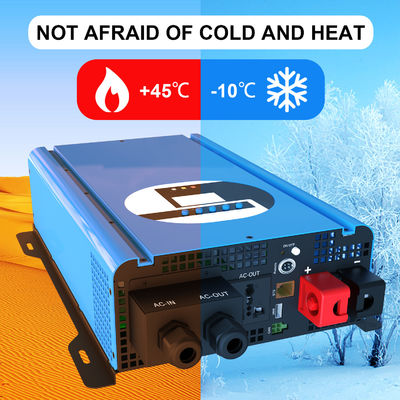

Operating Temperature -10℃~+45℃
Warranty 12 Months
Rated Power 3000W (6000W surge)
Input Voltage 12V DC
Output Voltage 220V AC (Pure Sine Wave)
Charging Current 100A (Adjustable)
Efficiency >90%
Protections Overload/Short-Circuit/Overheat/Low Voltage

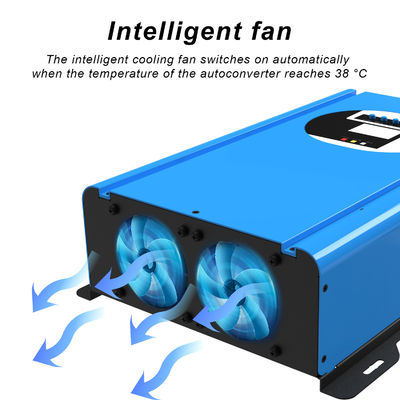

Cooling Silent fan (temperature-controlled)
Electrical Specifications
Charge Input
Voltage Range 180~264VAC
Frequency Range 47-63HZ
Maximum Efficiency ≥91% @220VAC
Maximum Current 15Amax
PF value ≥0.95
Surge Current ＜60ACold Start
Output
Rated Voltage 13.2V (maximum charging voltage 14.8V)
Rated Current 100A
Maximum Power 1400W
Voltage Accuracy ±0.8V
Current Accuracy ≤8%
Load Regulation ≤5%
Dynamic Load Regulation ≤5%
Battery Charging Voltage 10.5V-14.5V
Product Images

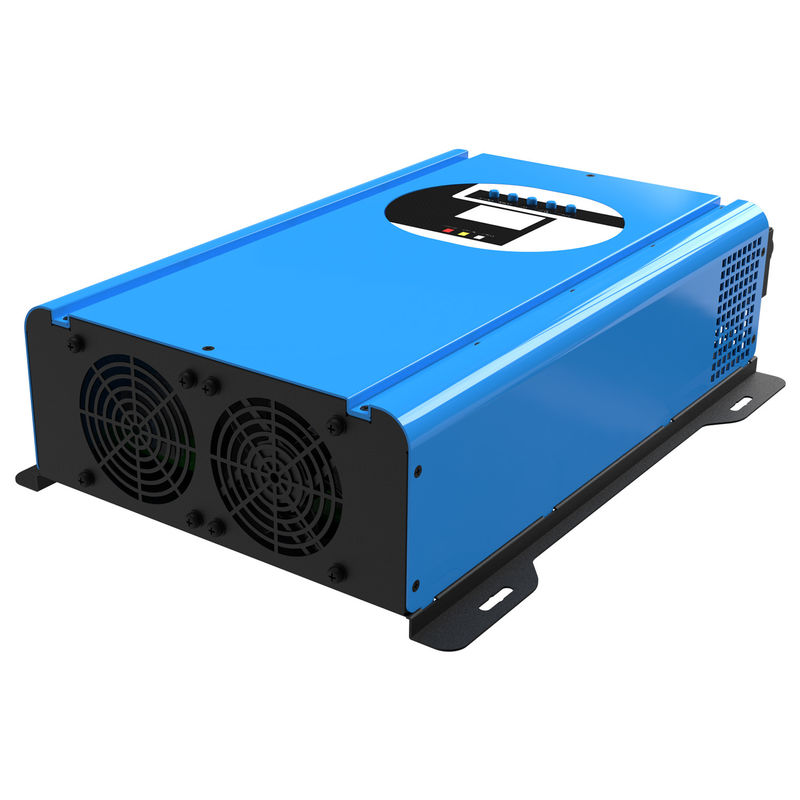

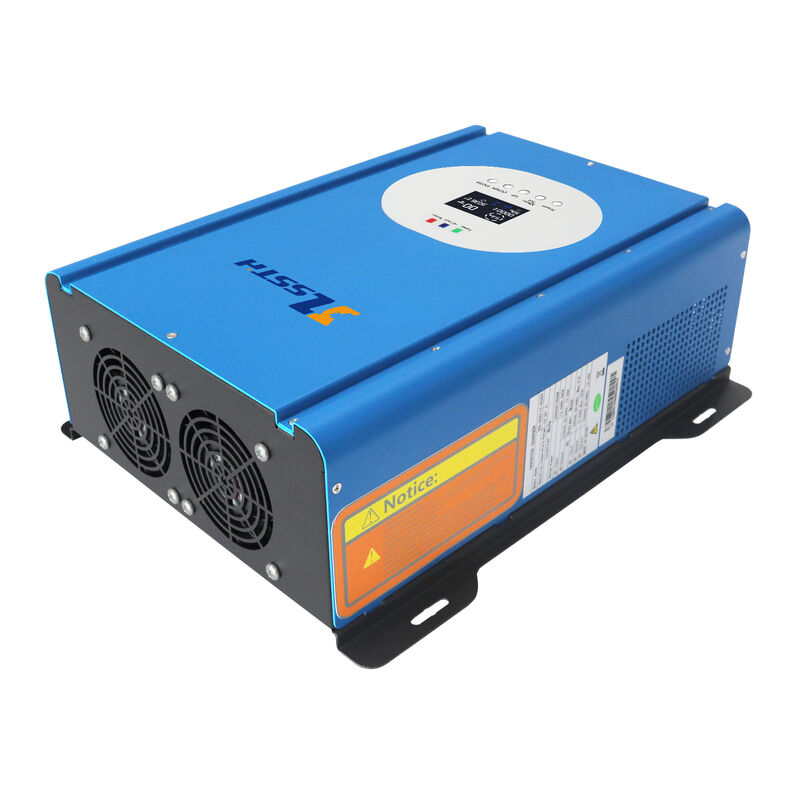

3KW Pure Sine Wave Inverter Bidirectional Grid Connected Inverter With LCD Display 0
3KW Pure Sine Wave Inverter Bidirectional Grid Connected Inverter With LCD Display 13KW Pure Sine Wave Inverter Bidirectional Grid Connected Inverter With LCD Display 2
3KW Pure Sine Wave Inverter Bidirectional Grid Connected Inverter With LCD Display 3
3KW Pure Sine Wave Inverter Bidirectional Grid Connected Inverter With LCD Display 4
