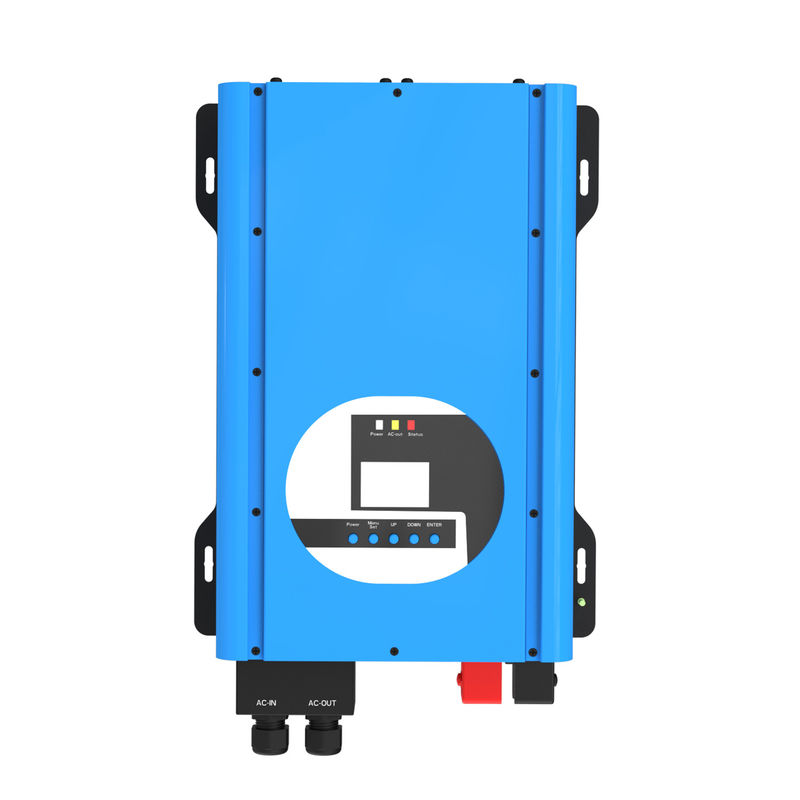

3000W Ups Inverter Off Grid Bidirectional Inverter With Battery Charging Air Cooling

Brand Name:	SZSSTH/OEM
Model Number:	RA
MOQ:	5 pieces
Price:	CN¥1,315.79/pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Network:

SDK

Type:

DC/AC Inverters

Output Type:

DUAL

Output Current:

Load

Output Frequency:

50Hz/60Hz

Size:

241*345*121 Mm

Weight:

6.1KG

Output Waveform:

Prue Sine Wave

Rated Power:

3000W

Peak Power:

6000W

Frequency:

50/60 HZ

Shell Material:

Lron

Applicable Battery Type:

Lead Acid/LiFePO4/NCM Batteny

Charging Method:

Constant Current/constant Voltage (CC/Cv)

Cooling Method:

Air Cooling

Operating Temperature:

-10℃~+45℃

Warranty:

12 Months

Highlight:

Battery Charging 3000W Ups Inverter

Off Grid Bidirectional Inverter

Air Cooling 3000W Ups Inverter

Product Description

3000W Pure Sine Wave Ups Inverter DC to AC 12V 220V Off Grid Car Inverter Bidirectional Power Inverter With Battery Charging

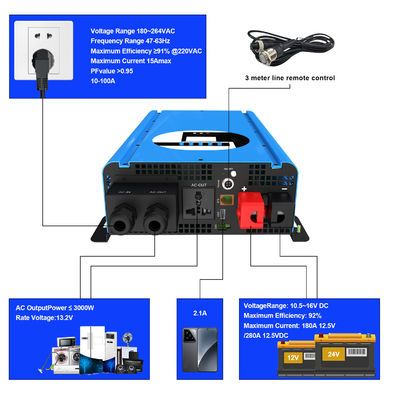

Electrical specifications
Model
Applicable Battery Type				Lead acid/LiFePO4/NCM battery
Charging Method				Constant current/constant voltage (CC/CV)
Cooling Method				Air Cooling
Charge
Input	Voltage Range		180~264VAC
		Frequency Range		47-63HZ
		Maximum Effciency		≥91% @220VAC
		Maximum Current		15Amax
		PF value		≥0.95
		Surge Current		＜60ACold Start
Output	Rated Voltage		13.2V (maximum charging voltage14.8V)
		Rated Current		100A
		Maximum Power		1400W
		Voltage Accuracy		±0.8V
		Current Accuracy		≤8%
		Load Regulation		≤5%
		Dynamic Load Regulation		≤5%
		Battery Charging Voltage		10.5V-14.5V

Inverter
Input	Voltage Range		10.5~16V DC
		Maxmum Effciency		92%
		Maximum Current		180A 12.5V/280A 12.5VDC
Output	Rated Voltage		220Vac @≥12.5 VDC
		Rated Current		13.64A @≥12.5VDC
		Output Frequency		50Hz/60Hz
		Maximum Power		2 000W (peak power4000W) @≥12VDC
		Maximum Power			3000W (peak power6000W) @≥12VDC
		Power Factor		≥0.95
		THD		≤3% (resistive load)
		Bypass Power		1800W.MAX(NA)
		Charge And Discharge At The Same Time		Charge1400W+Bypass1800W(NA)
		Bypass Inverter Switching Time		≤30 ms (NA)
Others	Shell Material		Iron
		Reference Weight		6.1KG
		Color		/
		Reference Size		241 * 345 * 121 mm
		Reference Packaging		/

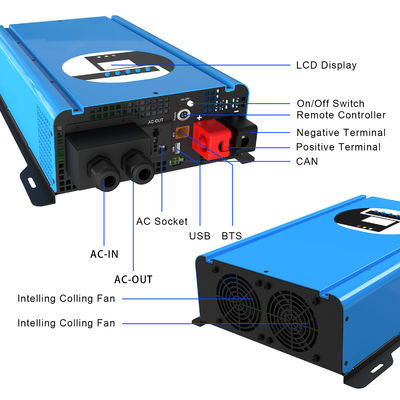

Refer to product appearance picture

Power Derating Curve

Product Feature

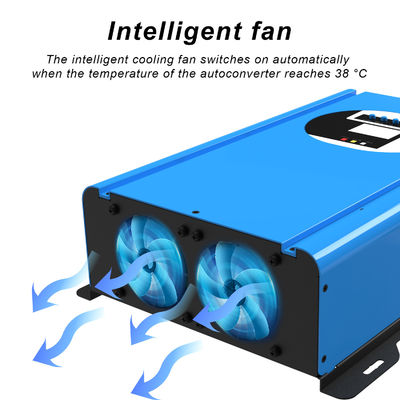

1.Intelligent fan: The intelligent cooling fan switches on automaticallywhen the temperature ofthe autoconverter reaches 38 °C

2.Greater compatibility: Applicable to all electrical appliances in daily life

3.BT CONNECTION: BT Smart Control

4.APP Remote Monitoring: Inverter operation status, fault prompt.clear and clear query by Yijian

5.Operating Temperature: Not afraid of cold and heat

6.LCD SCREEN: Real-time data monitoring Push buttons to control the machine

7.Applicable battery type: Lead acid/LiFePO4/NCM battery

More Than 30,000 Customers Are Attracted By Our Company, Because We Strictly Control The Installation And Inspection Of Electrical Products Before Leaving The Factory And The Test Before Delivery, So That We Can Do The Best We Can, So That Our Customers Can Use Our Products At Ease

We Have Passed Rohs Certification, Ce Certification, Bsci, Vertified Certification And Design Patent And Other International Certifications. Strictly Control Materials, Processing, Assembly, Debugging, Testing, Packaging, Transportation And Other Links To Ensure The Performance And Quality Of Electrical Products
