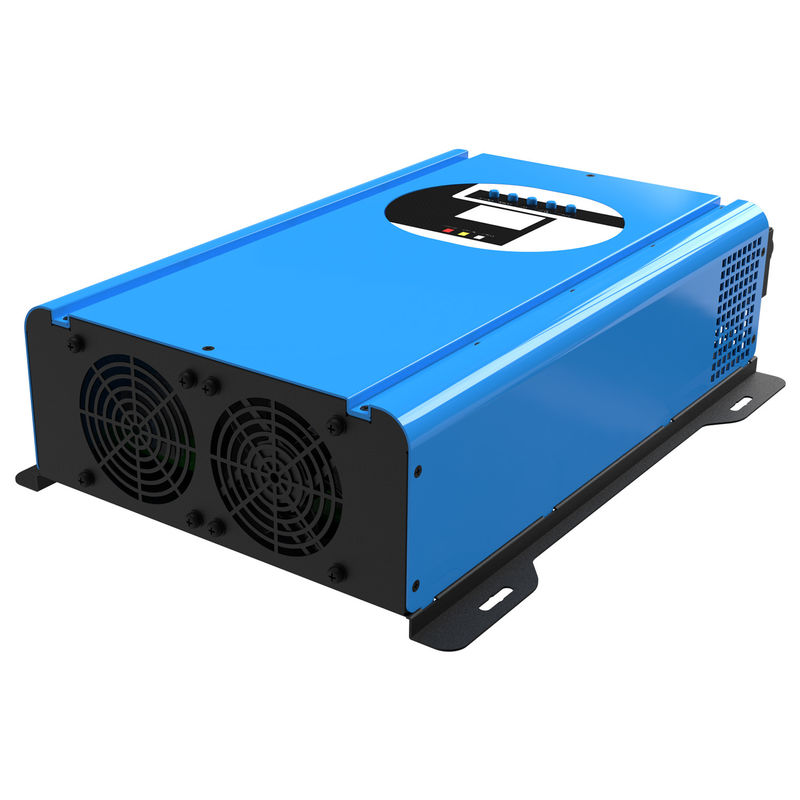

3Kw Pure Sine Wave Bidirectional Inverter For Battery Charging DC12V To AC220V

Product Details

Place of Origin: Guangdong, China

Brand Name: SZSSTH/OEM

Model Number: RA

Payment & Shipping Terms

Minimum Order Quantity: 5 pieces

Price: CN¥1,315.79/pieces

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                3Kw  Pure Sine Wave Bidirectional Inverter, DC12V To AC220V  Bidirectional Inverter, Pure Sine Wave Bidirectional Inverter


Network:	SDK	Type:	DC/AC Inverters
Output Type:	DUAL	Output Current:	Load
Output Frequency:	50Hz/60Hz	Size:	241345121 Mm
Weight:	6.1KG	Output Waveform:	Prue Sine Wave
Rated Power:	3000W	Peak Power:	6000W
Frequency:	50/60 HZ	Shell Material:	Lron
Applicable Battery Type:	Lead Acid/LiFePO4/NCM Batteny	Charging Method:	Constant Current/constant Voltage (CC/Cv)
Cooling Method:	Air Cooling	Operating Temperature:	-10℃~+45℃
Warranty:	12 Months

Network:	SDK
Type:	DC/AC Inverters
Output Type:	DUAL
Output Current:	Load
Output Frequency:	50Hz/60Hz
Size:	241345121 Mm
Weight:	6.1KG
Output Waveform:	Prue Sine Wave
Rated Power:	3000W
Peak Power:	6000W
Frequency:	50/60 HZ
Shell Material:	Lron
Applicable Battery Type:	Lead Acid/LiFePO4/NCM Batteny
Charging Method:	Constant Current/constant Voltage (CC/Cv)
Cooling Method:	Air Cooling
Operating Temperature:	-10℃~+45℃
Warranty:	12 Months

3Kw Pure Sine Wave Bidirectional Inverter For Battery Charging DC12V To AC220V

Electrical specifications
Model
Applicable Battery Type				Lead acid/LiFePO4/NCM battery
Charging Method				Constant current/constant voltage (CC/CV)
Cooling Method				Air Cooling
Charge
Input	Voltage Range		180~264VAC
		Frequency Range		47-63HZ
		Maximum Effciency		≥91% @220VAC
		Maximum Current		15Amax
		PF value		≥0.95
		Surge Current		＜60ACold Start
Output	Rated Voltage		13.2V (maximum charging voltage14.8V)
		Rated Current		100A
		Maximum Power		1400W
		Voltage Accuracy		±0.8V
		Current Accuracy		≤8%
		Load Regulation		≤5%
		Dynamic Load Regulation		≤5%
		Battery Charging Voltage		10.5V-14.5V

Inverter
Input	Voltage Range		10.5~16V DC
		Maxmum Effciency		92%
		Maximum Current		180A 12.5V/280A 12.5VDC
Output	Rated Voltage		220Vac @≥12.5 VDC
		Rated Current		13.64A @≥12.5VDC
		Output Frequency		50Hz/60Hz
		Maximum Power		2 000W (peak power4000W) @≥12VDC
		Maximum Power			3000W (peak power6000W) @≥12VDC
		Power Factor		≥0.95
		THD		≤3% (resistive load)
		Bypass Power		1800W.MAX(NA)
		Charge And Discharge At The Same Time		Charge1400W+Bypass1800W(NA)
		Bypass Inverter Switching Time		≤30 ms (NA)
Others	Shell Material		Iron
		Reference Weight		6.1KG
		Color		/
		Reference Size		241 * 345 * 121 mm
		Reference Packaging		/

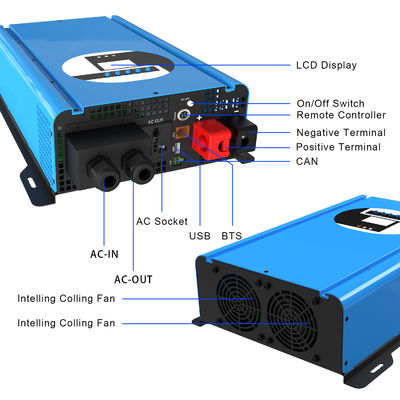

Refer to product appearance picture

Power Derating Curve

Product Feature

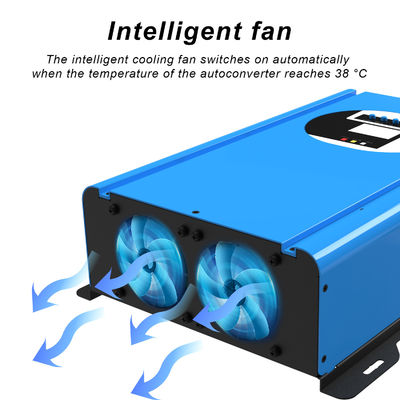

1.Intelligent fan: The intelligent cooling fan switches on automaticallywhen the temperature ofthe autoconverter reaches 38 °C

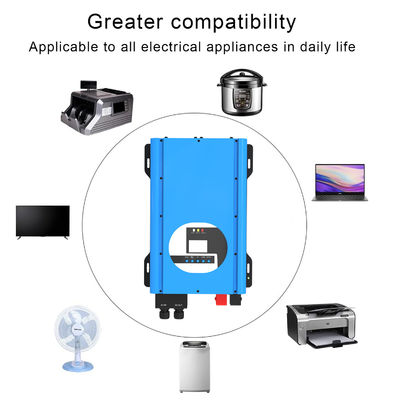

2.Greater compatibility: Applicable to all electrical appliances in daily life

3.BT CONNECTION: BT Smart Control

4.APP Remote Monitoring: Inverter operation status, fault prompt.clear and clear query by Yijian

5.Operating Temperature: Not afraid of cold and heat

6.LCD SCREEN: Real-time data monitoring Push buttons to control the machine

7.Applicable battery type: Lead acid/LiFePO4/NCM battery

More Than 30,000 Customers Are Attracted By Our Company, Because We Strictly Control The Installation And Inspection Of Electrical Products Before Leaving The Factory And The Test Before Delivery, So That We Can Do The Best We Can, So That Our Customers Can Use Our Products At Ease

We Have Passed Rohs Certification, Ce Certification, Bsci, Alibaba Vertified Certification And Design Patent And Other International Certifications. Strictly Control Materials, Processing, Assembly, Debugging, Testing, Packaging, Transportation And Other Links To Ensure The Performance And Quality Of Electrical Products
