1000W High Frequency Power Inverter With LCD Display DC 12V 24V AC 110V 220V 230V

Name: 1000W High Frequency Power Inverter With LCD Display DC 12V 24V AC 110V 220V 230V
Brand: Shenzhen ShengShi TianHe Electronic Technology Co., Ltd.
SKU: MTS1000W
Price: 140.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: SZSSTH

Model Number: MTS1000W

Payment & Shipping Terms

Price: CN¥694.45-1,279.24/sets

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                1000W High Frequency Power Inverter, LCD Display High Frequency Power Inverter, 1000W high frequency sine wave inverter


Network:	SDK	Type:	DC/AC Inverters
Output Type:	Single	Output Current:	4.55A/220V, 9.09A/110V
Output Frequency:	50Hz/60Hz, 50Hz/60Hz ±4Hz	Size:	34818595mm
Weight:	4KG	Product Name:	1000 Watt Power Inverter
Rated Power:	1000W	Peak Power:	2000W
Output Waveform:	Pure Sine Wave	Display:	LCD
Input Voltage Range:	DC12V(10.5-14.8V)/ DC24V(20-28V)	Output Voltage Range:	AC220V-240V/AC100V-120V
High Voltage Cut Off Range:	>14.8V/31V	Low Voltage Cut Off Rang:	<9.6V/20.5V

Network:	SDK
Type:	DC/AC Inverters
Output Type:	Single
Output Current:	4.55A/220V, 9.09A/110V
Output Frequency:	50Hz/60Hz, 50Hz/60Hz ±4Hz
Size:	34818595mm
Weight:	4KG
Product Name:	1000 Watt Power Inverter
Rated Power:	1000W
Peak Power:	2000W
Output Waveform:	Pure Sine Wave
Display:	LCD
Input Voltage Range:	DC12V(10.5-14.8V)/ DC24V(20-28V)
Output Voltage Range:	AC220V-240V/AC100V-120V
High Voltage Cut Off Range:	>14.8V/31V
Low Voltage Cut Off Rang:	<9.6V/20.5V

1000W High Frequency Power Inverter With LCD Display DC 12V 24V AC 110V 220V 230V

Model No.	MTS- 1000W	MTS-2000W	MTS-3000W	MTS-4000W	MTS-5000W	MTS-6000W
Rated Power	1000W	2000W	3000W	4000W	5000W	6000W
Peak Power	2000W	4000W	6000W	8000W	10000W	12000W
Input voltage	DC 12V(10.4-14.8V)/24V20-28V)/48V
Output voltage	110V/220V /230V /240V
Waveform	Pure sine wave
Frequency	50Hz /60Hz+4Hz
Availability power	90.50%

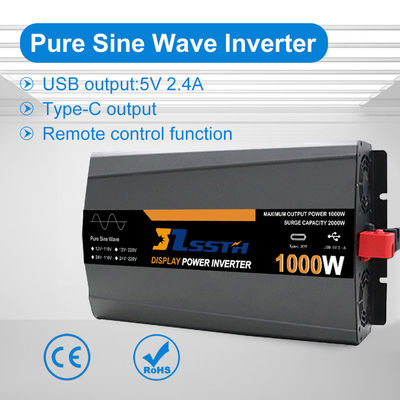

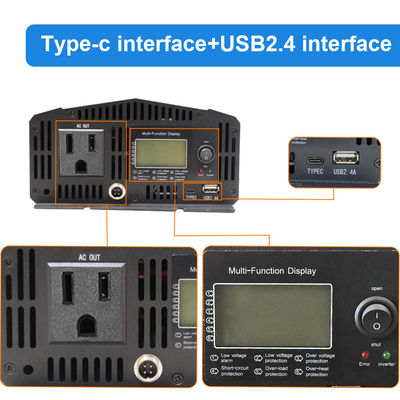

Type-C output	PD20W
USB output	5V 2.4A
Socket	One AC Socket	Dual AC Socket (EU, USA,Universal, Brazil socket optional )
Remote control	3W remote line control /5iw remote control
Cooling fan	Yes
Low voltage alarm	10.5V+0.5V /20.5V+0.5V
Low voltage range	9.6V/20.5V
High voltage range	>14.8V /31V
Non-load current	5.04A
Overload protection	>1100W	>2100W	>3100W	>4100W	>5100W	>6100W
Overload protection	>1000W /2000W /3000W /4000W/ 5000W
Reverse protection	Yes
Short-circuit protection	Ves
Dimension	34818595MM	398229110MM	514.8229110MM	545229110MM	545229110MM	545229110MM
Warranty	1 Year

■MTS series is an off grid pure sine wave inverter, which adopts microprocessor and full digital control. The output AC voltage and frequency can be flexibly adjusted through the dial switch on the rear panel. ■The application scope includes computer, communication, yacht, RV, family leisure and entertainment equipment, motors, electric tools, industrial control instruments and equipment, various types of AV appliances and other applications.

Leading the trend, brand new upgrade! We are proud to announce that the new upgraded MTS inverter is officially launched! It has ushered in eye-catching upgrades in both function and appearance, bringing you a better energy conversion experience.

MTS inverter, intelligent built-in fan cooling, brand new upgrade! No matter when and where, the intelligent fan is automatically adjusted to ensure the stable operation of the device. High-efficiency cooling system ensures long-term use and safety. MTS inverters and smart fans provide a better experience for your energy conversion!

MTS Pure Sine Wave Inverters - Customized for the world's leading sockets, thoughtful power adaptation

MTS pure sine wave inverter, for your power needs to provide the world's mainstream socket customization services, so that you can enjoy the world's intimate power adaptation, travel, enjoy unlimited power!

This Is The Common Application Of Inverters, It Also Includes The Following Equipment Can Constitute A Complete Operating System •Generator Or Utility • PV Modules

Inverter Can Be Applied To Most Home And Office Appliances, Such As Refrigerators, Air Conditioners, Notebooks; Consult Us For Additional System Architectures Based On Your Requirements

Rated current (Ampere)	Sectional area of conductor (m ㎡)	AWG	Scope of Safety Wiring
16A-25A	2.5	12
25A-32A	4	10
32A-40A	6	8
40A-60A	10	6
63A-80A	16	4
80A-100A	25	2
100A-125A	35	1
≧125A	50	0

More Than 30,000 Customers Are Attracted By Our Company, Because We Strictly Control The Installation And Inspection Of Electrical Products Before Leaving The Factory And The Test Before Delivery, So That We Can Do The Best We Can, So That Our Customers Can Use Our Products At Ease

We Have Passed Rohs Certification, Ce Certification, Bsci, Alibaba Vertified Certification And Design Patent And Other International Certifications. Strictly Control Materials, Processing, Assembly, Debugging, Testing, Packaging, Transportation And Other Links To Ensure The Performance And Quality Of Electrical Products

Rated Products

Q1: I would like to test the sample, but the shipping cost is too high, how to proceed to the next step?
A1: This is just the sample order, we have already offered the best cost. It would be some kind of high on shipping, while it worth it -- checking the real quality of goods, and making sure it is the right one we need. For our bulk order, we can choose a better delivery method like sea delivery, unit shipping cost would be greatly lower. All we wish is long-time business,win-to-win.

Q2: If our client wants to use a power inverter for the lithium battery, would it be possible?
A2: Our power inverter voltage range is set according to standard Lead-acid batteries, it would be some kind of difference from the lithium battery parameter. Pls show us your exact parameter of yours, then our Engineer will specially customize them for you in our factory.

Q3:Do you accept OEM service?
A3: Yes, We support OEM/ODM service.

Q4: Can I take a sample for a test?
A4: Yes, a Sample is available for us.

Q5: How do I pay you?
A5: We accept Alibaba Insurance order, It support T/T, Credit card, Paypal, Western Union, etc method.

Q6: What kind of warranty for your product?
A6:We provides one year warranty.

Q7:What is your terms of payment?
A7: T/T 30% as deposit, and 70% balance before shipment.

Q8: What are your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU.DDP

Q9:Can you print our brand on the product?
A9: Yes, We can. The MOQ:50PCS.
Remark: For the 150w /300w inverter (Red color dc 12v to ac 110v ), We can print your logo on the product for free.

Q10: How much does the shipping cost?
A10: Can you tell me how many pcs do you need? Please also send me your shipping address and zip code. Then I check how much the shipping cost was.
