Brand Name: | SZSSTH |
Model Number: | UD1524AP |
MOQ: | 1pieces |
Price: | $89/pieces |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Supply Ability: | 100000pcs/month |

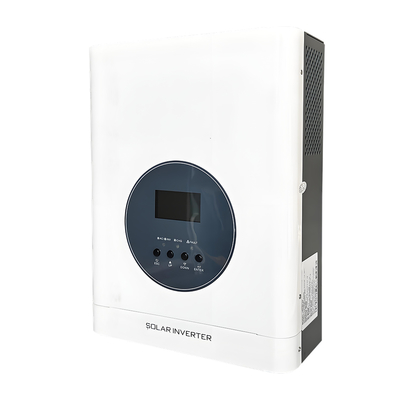

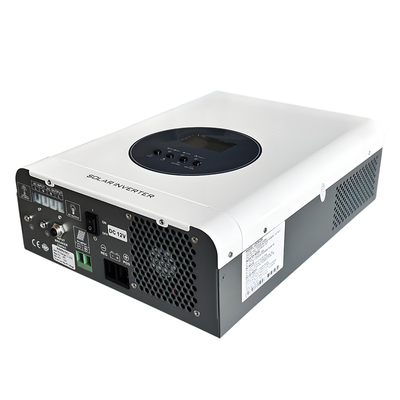

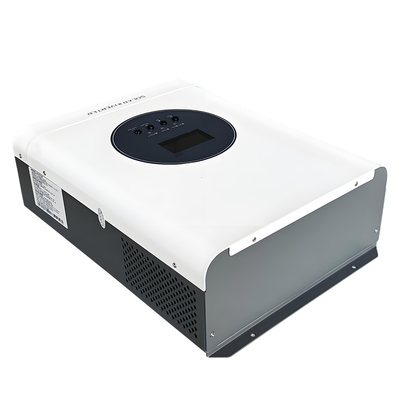

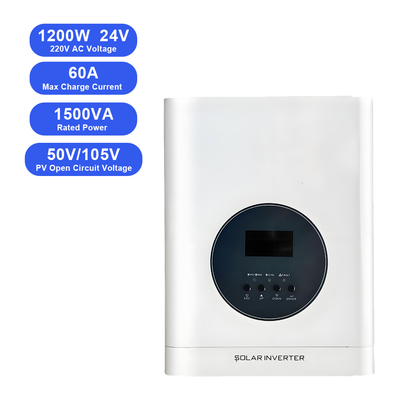

The renewable energy market is rapidly expanding demand for compact, efficient hybrid solar inverters that blend photovoltaic conversion with battery and grid integration. The 1.2 kW hybrid solar inverter (1200 W) is especially versatile, suitable for residential setups, small commercial systems, and off-grid installations, meeting the need for a reliable, dual-purpose power solution.
This 1.2 kW hybrid solar inverter is offered by a reputable Alibaba supplier recognized for delivering high-quality renewable energy products. The supplier’s offering includes:
This supplier excels in combining efficient design with global market standards, ensuring credibility and attractive value for buyers.
model | UDI012AP | UDI512AP | UD1524AP | UD2024AP | UD3024AM | UD5048AM | UD6348AM | U012548AM | UD10048AM |
---|---|---|---|---|---|---|---|---|---|
Ac input voltage | 220VAC(standard) | 220VAC(standard) | |||||||
Input voltage range | 154-264VAC+3V(Nor Model)185-264VAC+3V(UPs model) 110V:77-132VAC+3V(Nor Model)92-132VAC±3V(UPs model) |
||||||||
Input frequency | 50/60Hz±5% | 50/60Hz±5% | |||||||
Output power | 1000VA 800W |
1500VA 1200W |
1500VA 1200W |
2000VA 1600W |
3000VA 2400W |
5000VA 4000W |
6300VA 5000W |
10000VA 8000W |
12500VA 10000W |
AC model output Voltage | The output voltage under the mains is thesame as the input voltage | ||||||||
Battery model output voltage | 220VAC+10%(Custom110VAC+10%) | ||||||||
Battery model output frequency | 50HZ or 60HZ±1% | ||||||||
Battery model output wave | Pure sine wave | ||||||||
Battery type | External lead-acid battery,Gel battery,water battery or Lithium battery | ||||||||
Battery voltage | 12VDC | 12VDC | 24VDC | 24VDC | 24VDC | 48VDC | 48VDC | 48VDC | 48VDC |
Battery charging voltage | 13.7VDC | 13.7VDC | 27.4VDC | 27.4VDC | 27.4VDC | 54.8VDC | 54.8VDC | 54.8VDC | 54.8VDC |
Maximum PV array power | 12V:800W | 24V:1600W | 48V:3200W | 48V:6400W | |||||
Solar input voltage range | 12V:PWM 15V-50VDC 24V:PWM 30V-105VDC |
24V:MPPT 30V-150VDC 48V:MPPT 60V-150VDC |
|||||||
Maximum PV Display Open Circuit Voltage |
12V: PWM 50VDC 24V: PWM 105VDC |
24V:MPPT 150VDC 48V:MPPT 150VDC |
|||||||
Maximum solar charging current | 60A | 120A | |||||||
Maximum AC Charge Current | 27A | 40A | 20A | 30A | 60A | 40A | 50A | 80A | 100A |
load peak ratio | (MAX)3:1 | ||||||||
Protective function | Under themains:input overcurrent fuse Under inverter: overload protection,short circuit protection, low voltage protection (with battery anti-reverse connection, board). |
||||||||
Status Display | You can view parameters such as Ac voltage, Ac frequency, PVvoltage, Pv current, output voltage output frequency, battery voltage, load current and other parameters by turning the page keys. |
||||||||
Voice prompt | Low batteryprotection ouzzerlona peep Low batterybuzzer beeps every second Machine fault buzzer beeps Overload buzzer beeps When the overload is less than 130%, the buzzer will sound every second,and the output will be turned off after 30s. When the overload is greater than150%.the output will be turned off after 300ms. |
||||||||
Operating temperature | 0°C~40℃ | ||||||||
Storage temperature | -15°C~45°C | ||||||||
Relative temperature | -10°C~90℃C no condensation | ||||||||
Noise | <45dB | ||||||||
size(L*W*H)mm | 465*310*135MM | 545*400*200MM |
Combines inverter, solar charger, and battery charger into one compact unit with MPPT control—ideal for off-grid, backup, or hybrid power systems
Produces pure sine wave output, delivering clean, stable electricity safe for all sensitive electronics, including computers, appliances, and medical equipment
− Inverter efficiency around 85 % ensures effective energy conversion.
− MPPT efficiency of approximately 99 % maximizes energy extraction from solar panels
Equipped with LCD and LED displays, the inverter simplifies operation and real-time monitoring with clear insights into battery status, power flow, and charging priorities
CE and RoHS certifications guarantee adherence to quality, performance, and safety standards. A 12-month warranty further reinforces product confidence
