6.2kW 48V Hybrid Solar Inverter with MPPT & Pure Sine Wave

Name: 6.2kW 48V Hybrid Solar Inverter with MPPT & Pure Sine Wave
Brand: Shenzhen ShengShi TianHe Electronic Technology Co., Ltd.
SKU: SP-7000
Price: 1.00 USD
Availability: InStock

Brand Name:	SZSSTH
Model Number:	SP-7000
Price:	CN¥1,675.21/pieces 1-499 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Input Voltage:

48V

Output Voltage:

220V 230V

Output Current:

Load

Output Frequency:

50Hz/60Hz

Output Type:

Single

Size:

423*290*105mm

Type:

DC/AC Inverters

Inverter Efficiency:

98%

Weight:

7.5kg

Product Name:

Hybrid Solar Inverter 6.2Kw

Inverter Type:

Hybrid Off Grid Solar Inverter

Controller Type:

MPPT Solar Controller

Communication:

WiFi/GPRS(Optional)

Battery Type:

Lead Acid \ Lithium \ Gel

Protection:

Overload

Rated Power:

7000VA

AC Voltage:

230VAC

Display:

LCD Display

Max PV Voltage:

450V

Certificate:

CE, ROHS

Warranty:

1 Year

Highlight:

6.2kW hybrid solar inverter

48V solar inverter with MPPT

pure sine wave solar inverter

Product Description

SP-7000 — 6200 W (7000 VA) 48 V Home Solar Hybrid Inverter with Pure Sine Wave & Overload Protection

Product Specifications

Attribute	Value
Input Voltage	48V
Output Voltage	220V 230V
Output Current	Load
Output Frequency	50Hz/60Hz
Output Type	Single
Size	423290105mm
Type	DC/AC Inverters
Inverter Efficiency	98%
Weight	7.5kg
Product name	Hybrid Solar Inverter 6.2Kw
Inverter type	Hybrid Off Grid Solar Inverter
Controller type	MPPT Solar Controller
Communication	WiFi/GPRS(Optional)
Battery type	Lead Acid \ Lithium \ Gel
Protection	Overload
Rated power	7000VA
AC Voltage	230VAC
Display	LCD Display
Max PV voltage	450V
Certificate	CE, ROHS
Warranty	1 year

Product Overview

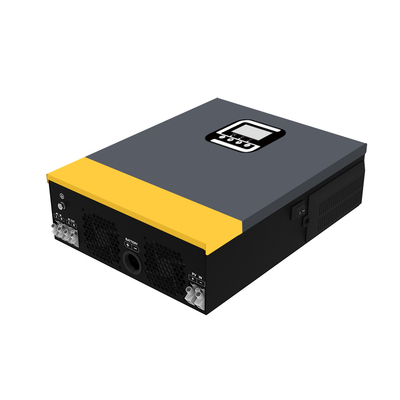

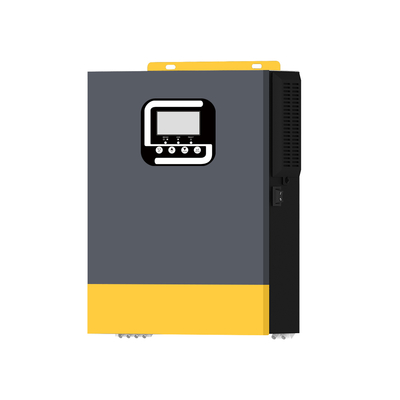

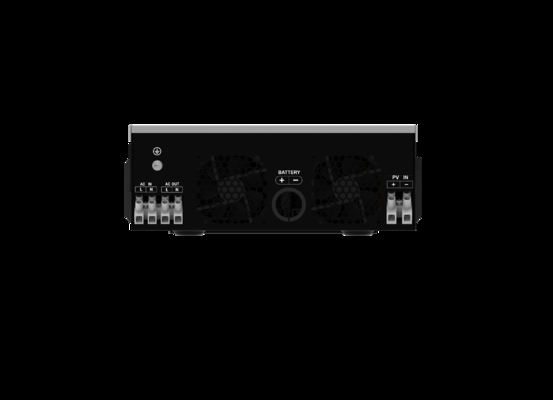

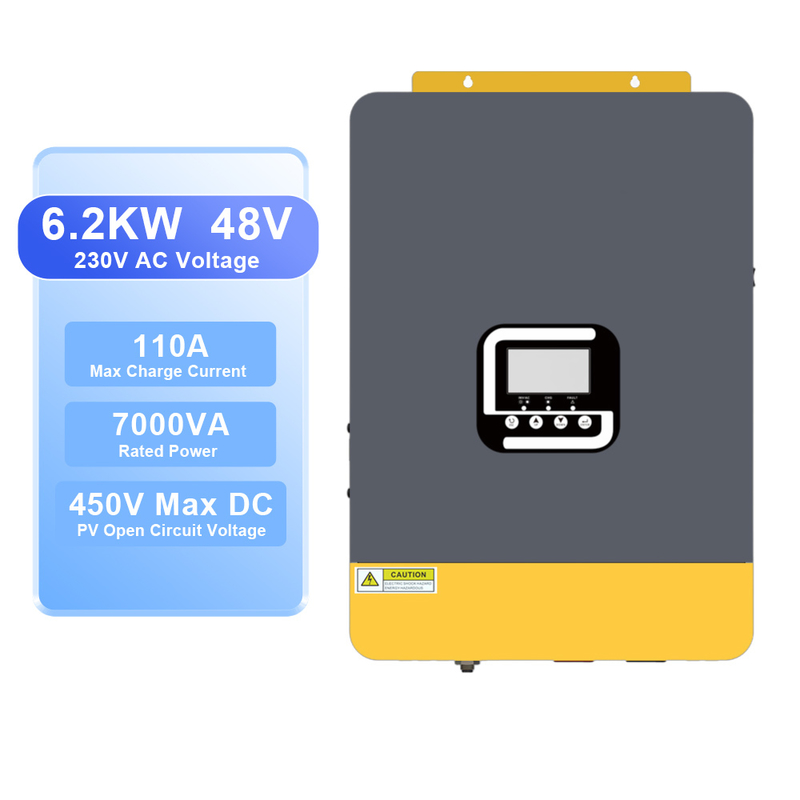

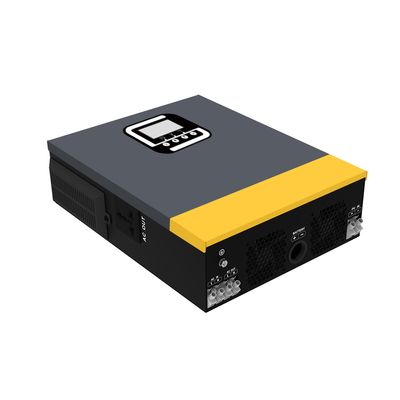

The SP-7000 hybrid inverter offers a reliable and efficient all-in-one solar solution built for modern home energy needs. With a robust 6200 W (7000 VA) capacity, this powerful 48 V off-grid inverter combines a high-performance MPPT solar charger and pure sine wave output into a compact, user-friendly package.

Key Features

Pure Sine Wave Output
Ensures clean, stable AC power (220-230 VAC, 50/60 Hz) that's safe for sensitive electronics and appliances. Efficiency is impressively high—up to 98%.
Built-In MPPT Solar Charger
Supports a broad PV input range of 55 -450 V DC and handles up to 110 A solar charging current—ideal for maximizing power from solar panels in varying daylight conditions.
Flexible Power Prioritization
Programmable to prioritize power sources—solar (PV), battery, or grid—tailoring operation to your energy strategy and ensuring seamless switchover.
Smart Battery Support & Compatibility
Compatible with lead-acid, lithium, and gel batteries. Offers BMS communication and features a smart battery charge design to extend battery life.
Comprehensive Protection Features
Safeguards against overload, high temperature, short circuits, and includes a "cold start" function. An intelligent fan adjusts speed for optimal cooling.
Portable Connectivity & Control
Equipped with RS-232/RS-485 communication as standard. Optional Wi-Fi and GPRS modules enable remote monitoring via iOS or Android apps.
Optional Harsh Environment Kit
Add-ons such as an anti-dust kit make this inverter resilient in harsh environments.

Technical Specifications

MODEL	SP-2200	8P-3200	SP-4200	SP-4200	SP-7000
Rated Power	2200VA/1800W	3200VA/3000W	4200VA/3800W	4200VA/3800W	7000VA/6200W
INPUT
Voltage	230VAC
Selectable Voltage Range	170-280VAC(for personal computers) 90-280VAC(for home appliances)
Frequency Range	50Hz/60Hz(Autosensing)
OUTPUT
AC Voltage Regulation(Batt.Mode)	230VAC±5%
Surge power	4400VA	6400VA	8400VA	8400VA	14000VA
Transfer Time	10ms(for personal computers) 20ms(for home appliances)
Waveform	Pure SineWave
BATTERY & AC CHARGER
Battery Voltage	12VDC	24VDC	24VDC	48VDC	48VDC
Floating Charge Voltage	13.5VDC	27VDC	27VDC	54VDC	54VDC
Overcharge Protection	15.5VDC	31VDC	31VDC	61VDC	61VDC
Maximum charge current	60A	80A	60A	80A	-
SOLAR CHARGER
MAX.PV Array Power	2000W	3000W	6000W	-	-
MPPT Range@Operating Voltage	55-450VDC
Maximum PV Array Open Circuit Voltage	450VDC
Maximum Charging Current	80A	110A	80A	110A	-
Maximum Efficiency	98%
PHYSICAL
Dimension.DWH(mm)	40528698mm	423290100mm	423290105mm	-	-
Net Weight(kgs)	4.5kg	5.0kg	6.8kg	6.9kg	7.5kg
Communication Interface	RS 232/RS 485(Standard) WIFI(Optional)
OPERATING ENVIRONMENT
Humidity	5%to 95%Relative Humidity(Non-condensing)
Operating Temperature	-10°C to 55°C
Storage Temperature	-15°C to 60°C
