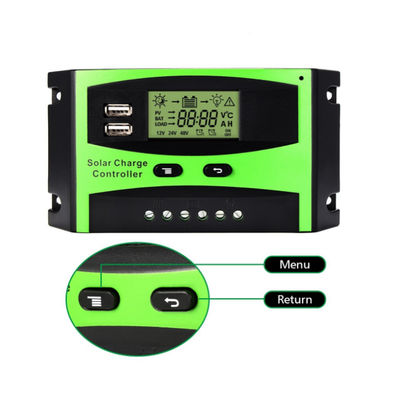

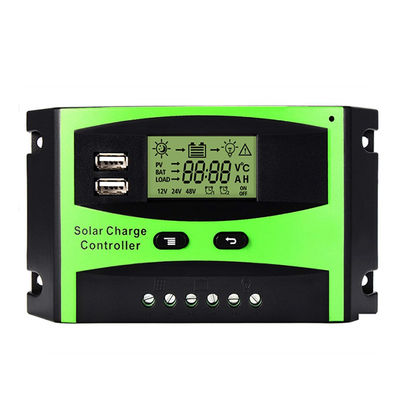

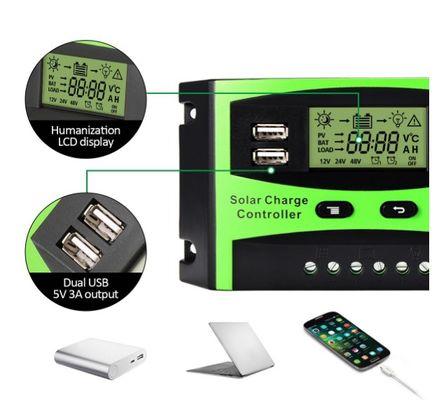

PWM Solar Panel Protection Solar Charger Charge Controller

PWM Solar Panel Protection Solar Charger Charge Controller

Brand Name:	SZSSTH/OEM
Model Number:	SZSSTH-MN1230, PWM
Price:	CN¥124.27/pieces 1-99 pieces
Supply Ability:	2500 Piece/Pieces per Week

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

PWM

Application:

Charger Controller, Voltage Controller, Solar System Controller, Charger Controller

Work Time (h):

24h

Max PV Power:

1050w

Max PV Voltage:

100v

Rated Voltage:

12v 24v

Maximum Current:

30A

Warranty:

1 Years, 1 Year

Weight:

780g

Color:

Green

Product Name:

Solar Charge Controller Module

Keywords:

Solar Charge Controller 30a

Certificate:

CE ROHS

Port:

Yantian Or Shekou

Packaging Details:

Packing: gift box
Quantity/carton: 50pcs in one carton

Product Description

PWM Solar Panel Protection Solar Charger Charge Controller

Ideal Applications

Small Off-Grid Systems: Powers cabins, RVs, boats, and gate operators with efficient energy management
Backup Lighting: Reliable control for solar street lights, garden lamps, and security systems
Agricultural Use: Cost-effective solution for livestock fencing, irrigation controllers, and remote monitoring stations

Technical Specifications

Max PV Input: 50V DC
Charging Current: 30A
Standby Consumption: <10mA
Compatible Batteries: Sealed/Flooded/GEL
Terminal Size: 8mm²

Secure Your Solar Power – This factory-direct PWM controller offers essential protection without complex setups. Compatible with 100W-700W solar arrays, it’s the economical guardian for entry-level renewable energy systems. Includes 18-month warranty and IP32-rated casing for dependable service.

Model	20A	30A	40A	50A	60A
System voltage	12V/24V, 24V /48V (Automatically switch)
The Maximum voltage of the solar panel input	50V (12/24V) ,100V (24V/48V)
Self loss	<13mA
Maximum charge current	20A	30A	40A	50A	60A
Maximum discharge current	20A	30A	40A	50A	60A
LVD	10.5V (9-11V), 21V (18V-22V), 42V (36V-44V)
LVR	12.6V(11-13.5V), 25.2V( 22-27V), 50.4V( 45-54V)
Battery overpressure protection	15V /30V /60V
Charging mode	PWM
Terminal scale	28-10 AWG
Waterproof level	IP32
Product size	1879047mm			19510750mm	18712257mm
Packing size	20010253mm			21011859mm	20013263mm
Weight	780g					850g
