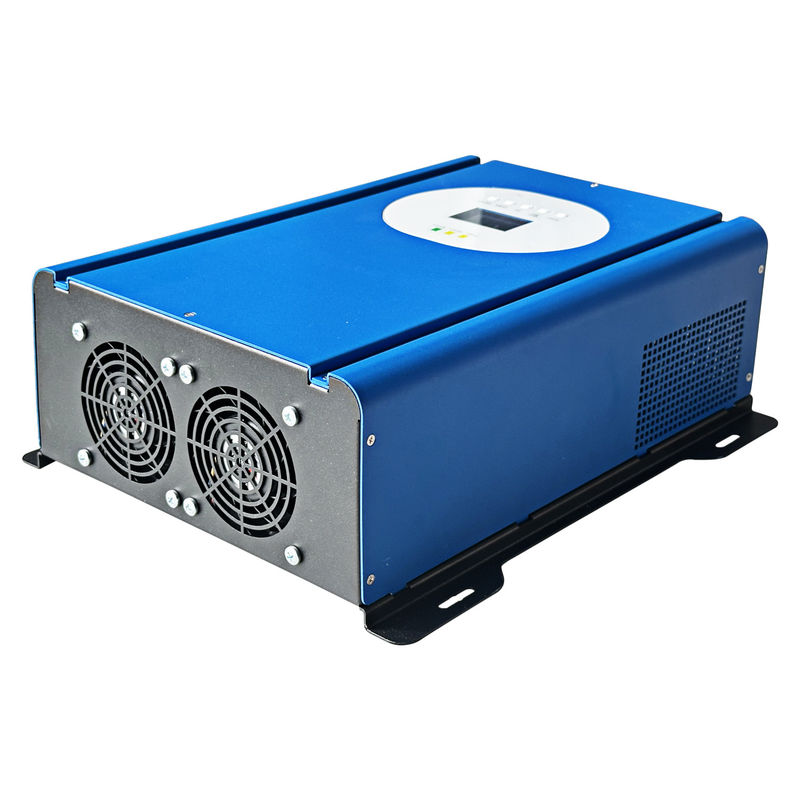

Ups Power Inverter 3000w With 100A Charging Current 12v to 110v 220v

RA Series Bidirectional Inverter – Efficient Energy Conversion, Intelligent Power Management

Product Overview

The RA Series Bidirectional Inverter is a high-performance power conversion device that integrates charging and inverter functions, compatible with various battery types, including lead-acid, LiFePO₄, and NCM. Available in RA2000W and RA3000W models, it delivers stable, efficient, and safe power solutions for diverse applications.

Key Features

1. Bidirectional Charging & Discharging

   • AC to DC: Supports 180~264VAC input with a 100A max charging current for fast battery charging.

   • DC to AC: Input range 10.5~16VDC, output 220VAC, rated power 2KW/3KW, and peak power up to 4KW/6KW to power various appliances.

2. Bypass Function (Simultaneous Charge & Discharge)

   • In charging mode, supports bypass output (1800W for RA3000W), ensuring uninterrupted power supply.

3. High Efficiency & Energy Saving

   • ≥91% charging efficiency, 92% inverter efficiency, minimizing energy loss.

   • ≤20W no-load power consumption, eco-friendly operation.

4. Multi-Protection Safety System

   • Overload, short-circuit, overvoltage, undervoltage, and overtemperature protection.

   • Auto power derating at 95°C, shutdown at 105°C, and resume at 85°C for extended lifespan.

5. Smart Control & Customization

   • 5-button control panel with 17 customizable parameters (battery type, charge voltage/current, output frequency/voltage, etc.).

   • LCD display for real-time monitoring of status, fault codes, and battery level.

Applications

• Home Backup Power: Automatically switches to battery power during outages.

• Outdoor Adventures: Powers camping gear, RVs, and portable devices.

• Commercial Use: Reliable power for small shops, food trucks, and mobile businesses.

Why Choose RA Series?

✅ Wide Compatibility: Supports multiple battery types.
✅ Robust Cooling: Fan-cooled design for continuous high-load operation.
✅ Safety Certified: Complies with IEC62388/GB4943, insulation resistance >2MΩ, leakage current ≤5mA.
✅ Portable & Durable: Metal casing, 6.1KG lightweight, compact size (241×345×121mm).

Technical Specifications

• Input Voltage: 180~264VAC (charging), 10.5~16VDC (inverting).

• Output Power: RA2000W (2KW rated / 4KW peak), RA3000W (3KW rated / 6KW peak).

• Operating Conditions: -10°C~+45°C, <3000m altitude, 10~95%RH (non-condensing).

Usage Tips

⚠️ Ensure correct battery polarity and proper ventilation.
⚠️ Avoid extreme heat, moisture, and blockages in cooling vents.
⚠️ Do not disassemble during faults—contact authorized service.

Upgrade to RA Series Bidirectional Inverter for Reliable, Efficient, and Smart Power Management!

Order Now and Experience Uninterrupted Energy!
