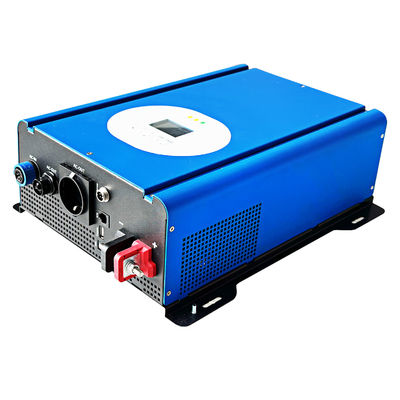

3000W Pure Sine Wave Home Emergency Backup Ups Inverter With 100A Charger and DUAL Output for Home

Product Details

Place of Origin: Guangdong, China

Brand Name: SZSSTH/OEM

Model Number: RA

Document: EN RA 2KW 3KW Bidirectional...1).pdf

Payment & Shipping Terms

Minimum Order Quantity: 5 pieces

Price: $154.00-$180.00/pieces

Packaging Details: carton box

Delivery Time: 7 work days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 100000pcs/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                Home Emergency Backup Ups Inverter, 3000W Ups Inverter, Pure Sine Wave Ups Inverter


Type:	DC/AC Inverters	Output Type:	DUAL
Size:	241345121 Mm	Output Waveform:	Prue Sine Wave
Frequency:	50/60 HZ	Operating Temperature:	-10℃~+45℃
Warranty:	12 Months

Type:	DC/AC Inverters
Output Type:	DUAL
Size:	241345121 Mm
Output Waveform:	Prue Sine Wave
Frequency:	50/60 HZ
Operating Temperature:	-10℃~+45℃
Warranty:	12 Months

3000W Pure Sine Wave Home Emergency Backup Ups Inverter With 100A Charger and DUAL Output for Home

RA Series Bidirectional Inverter – Power Your World with Efficiency & Reliability

Product Overview

The RA Series Bidirectional Inverter is a high-performance power conversion solution designed for seamless energy management. With models ranging from 2000W to 3000W, it supports 12V/24V DC to 220V AC (or 110V AC) bidirectional conversion, enabling:

AC Charging: Charge batteries (lead-acid/LiFePO4/NCM) at up to 100A.
DC Inversion: Deliver stable 2000W–3000W AC output (peak power: 4000W–6000W).
Bypass Mode: Simultaneous charging and discharging (1400W + 1800W).

Key Features

✔ High Efficiency

≥91% efficiency (AC-DC), 92% (DC-AC).
Low no-load consumption (≤20W).

✔ Advanced Protection

Overload/short-circuit/over-temperature protection.
Auto-recovery for undervoltage (10.5V–16V DC input range).

✔ Smart Control

Adjustable parameters (voltage, frequency, charging current) via LCD panel.
Supports CAN/485 communication for remote monitoring.

✔ Robust Design

Air-cooled with wide operating temperature (-10°C to +45°C).
Compact size (241×345×121mm), iron casing.

Applications

Off-grid solar systems
Emergency backup power
Mobile/RV power solutions

Safety Certified: Complies with IEC62388 and GB4943 standards.

Learn More: [Contact Us/Download Full Specs]

Electrical specifications
Model
Applicable Battery Type		Lead acid/LiFePO4/NCM battery
Charging Method		Constant current/constant voltage (CC/CV)
Cooling Method		Air Cooling
Charge
Input	Voltage Range	180~264VAC
	Frequency Range	47-63HZ
	Maximum Effciency	≥91% @220VAC
	Maximum Current	15Amax
	PF value	≥0.95
	Surge Current	＜60ACold Start
Output	Rated Voltage	13.2V (maximum charging voltage14.8V)
	Rated Current	100A
	Maximum Power	1400W
	Voltage Accuracy	±0.8V
	Current Accuracy	≤8%
	Load Regulation	≤5%
	Dynamic Load Regulation	≤5%
	Battery Charging Voltage	10.5V-14.5V

Inverter
Input	Voltage Range	10.5~16V DC
	Maxmum Effciency	92%
	Maximum Current	180A 12.5V/280A 12.5VDC
Output	Rated Voltage	220Vac @≥12.5 VDC
	Rated Current	13.64A @≥12.5VDC
	Output Frequency	50Hz/60Hz
	Maximum Power	2 000W (peak power4000W) @≥12VDC
		3000W (peak power6000W) @≥12VDC
	Power Factor	≥0.95
	THD	≤3% (resistive load)
	Bypass Power	1800W.MAX(NA)
	Charge And Discharge At The Same Time	Charge1400W+Bypass1800W(NA)
	Bypass Inverter Switching Time	≤30 ms (NA)
Others	Shell Material	Iron
	Reference Weight	6.1KG
	Color	/
	Reference Size	241 * 345 * 121 mm
	Reference Packaging	/
