Pure Sine Wave 2000W Inverter 12V/24V/48V Input 110V/220V Output

Pure Sine Wave 2000W Inverter 12V/24V/48V Input 110V/220V Output

Brand Name:	SSTH
Model Number:	RS-12000
MOQ:	1
Price:	＄110-332/pieces 1-99 pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Input Voltage:

12V/24V/48V

Output Voltage:

110V/220V

Output Current:

70A/35A

Output Frequency:

50Hz/60Hz

Output Type:

Single, Pure Sine Wave

Size:

390cm*222cm*178cm

Type:

DC/AC Inverters

Inverter Efficiency:

90%

Weight:

15kg

Product Name:

Pure Sine Wave 2000W Inverter

Model:

SSTH-RS2000W

Certificate:

CE Rohs

Port:

Shekou

Packaging Details:

carton

Highlight:

2000W pure sine wave inverter

12V 24V 48V power inverter

110V 220V output inverter

Product Description

Off-Grid Hybrid Solar Inverter – 3 kW / 4 kW / 5 kW / 6 kW Series (SSTH-RP)

Product Specifications

Attribute	Value
Input Voltage	12V/24V/48V
Output Voltage	110V/220V
Output Current	70A/35A
Output Frequency	50Hz/60Hz
Output Type	Single, Pure sine wave
Size	390cm222cm178cm
Type	DC/AC Inverters
Inverter Efficiency	90%
Weight	15kg
Product name	Pure Sine Wave 2000W Inverter
Model	SSTH-RS2000W
Certificate	CE Rohs
Port	shekou

Product Highlights

Pure Sine Wave Output (single-phase) — provides clean, stable AC power, suitable for sensitive home appliances and mission-critical equipment.
High Inverter Efficiency ≥ 90% — ensures minimal energy loss and extended runtime.
Standard 48 V DC Input — customizable based on project requirements.
Selectable Output Voltage — supports 110 V/120 V (US) or 220 V/230 V (international) models.
Robust Output Current — up to 75 A @ 110 V or 40 A @ 220 V, enabling high-demand loads.
Flexible Output Frequency — compatible with both 50 Hz and 60 Hz systems.
Compact & Sturdy Design — dimensions: 584 × 425 × 180 mm; Weight: approx. 67 kg (may vary with configuration).
12-Month Warranty — provides quality assurance and peace of mind.

Technical Specifications

Model	RS2000	RS3000	RS4000	RS5000	RS6000
Rated Power	2000W	3000W	4000W	5000W	6000W
INPUT
Voltage	100/110/120Vac, 220/230/240Vac
Selectable Voltage Range	Wide Range: 75vac - 138vac, 155vac - 275vac (For Home Appliances) Narrow Range: 82vac -138vac, 165vac - 275vac (For Personal Computer)
Frequency Range	40-70Hz(50Hz/60Hz)
OUTPUT
AC Voltage Regulation	Vout (±10V)
Surge Power	4000VA	9000VA	12000VA	15000VA	18000VA
Efficiency (Peak)	88%	91%	91%	91%	91%
Transfer Time	＜20ms	＜10ms	＜10ms	＜10ms	＜10ms
Waveform	Pure Sine Wave
BATTERY
Battery Voltage	24V	24V	48V	24V	48V
Charge Current	35A	50A	25A	70A	35A
Fast Charge Voltage	28.6VDC	28.6VDC	57.2VDC	28.6VDC	57.2VDC
Float Charge Voltage	27.4VDC	27.4VDC	54.8VDC	27.4VDC	54.8VDC
Over Charge Voltage	33.0VDC	33.0VDC	66.0VDC	33.0VDC	66.0VDC
Battery low Voltage Alarm	21.0VDC	21.0VDC	42.0VDC	21.0VDC	42.0VDC
Battery low Voltage Shutdown	20.0VDC	20.0VDC	40.0VDC	20.0VDC	40.0VDC
Protection	Over Charging, Over Temp, Over Battery voltage, Over load, short-circuit
PHYSICAL

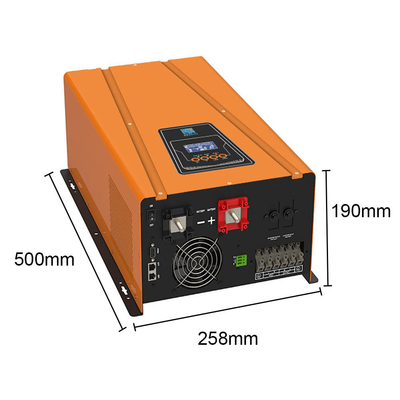

Dimension (DWH mm)	390222178	500258190	574345197	574345197	574345197
Net Weight (kgs)	15	25.2	24.6	34.4	33.8
ENVIRONMENT
Humidity	5~95% Relative Humidity (Non-condensing)
Operating Temperature	-10℃ to 50℃
Storage Temperature	-15℃ to 60℃

Why Choose the SSTH RP Series?

Efficient and Reliable — ≥ 90% efficiency minimizes losses, while pure sine wave output ensures compatibility with sensitive electronics.
Flexible and Global-Ready — versatile voltage/frequency options make it easy to deploy across diverse regions and applications.
Trusted Manufacturer — backed by SSTH's experience, quality assurance, and customization support.
Compact Yet Powerful — space-saving design with high output current capacity for demanding applications.
B2B Friendly — suitable for OEM, wholesale, and volume projects with branding and configuration flexibility.
