Brand Name: | SSTH |
Model Number: | RS-12000 |
MOQ: | 1 |
Price: | $110-332/pieces 1-99 pieces |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Supply Ability: | 1000 Piece/Pieces per Month |
Input Voltage | 12V/24V/48V |
Output Voltage | 110V/220V |
Output Current | 70A/35A |
Output Frequency | 50Hz/60Hz |
Output Type | Single, Pure sine wave |
Size | 390cm*222cm*178cm |
Type | DC/AC Inverters |
Inverter Efficiency | 90% |
Weight | 15kg |
Model | SSTH-RS2000W |
Certification | CE Rohs |
Manufacturer: Shenzhen Sheng Shi Tian He Electronic Technology Co., Ltd. (SSTH) — a 15-year multispecialty supplier specializing in power inverters, solar hybrid systems, and battery controllers.
Our 3KW-6KW Hybrid Solar Inverter series represents the pinnacle of off-grid and grid-tied power conversion, combining military-grade components with intelligent energy management. Designed for high efficiency and reliability, these inverters are ideal for homeowners, businesses, and industrial applications seeking uninterrupted power supply and maximum solar energy utilization.
Model | RS2000 | RS3000 | RS4000 | RS5000 | RS6000 |
---|---|---|---|---|---|
Rated Power | 2000W | 3000W | 4000W | 5000W | 6000W |
INPUT | |||||
Voltage | 100/110/120Vac, 220/230/240Vac | ||||
Selectable Voltage Range | Wide Range: 75vac - 138vac, 155vac - 275vac (For Home Appliances) Narrow Range: 82vac -138vac, 165vac - 275vac (For Personal Computer) | ||||
Frequency Range | 40-70Hz(50Hz/60Hz) | ||||
OUTPUT | |||||
AC Voltage Regulation | Vout (±10V) | ||||
Surge Power | 4000VA | 9000VA | 12000VA | 15000VA | 18000VA |
Efficiency (Peak) | 88% | 91% | |||
Transfer Time | <20ms | <10ms | |||
Waveform | Pure Sine Wave | ||||
BATTERY | |||||
Battery Voltage | 24V | 24V | 48V | 24V | 48V |
Charge Current | 35A | 50A | 25A | 70A | 35A |
Fast Charge Voltage | 28.6VDC | 28.6VDC | 57.2VDC | 28.6VDC | 57.2VDC |
Float Charge Voltage | 27.4VDC | 27.4VDC | 54.8VDC | 27.4VDC | 54.8VDC |
Over Charge Voltage | 33.0VDC | 33.0VDC | 66.0VDC | 33.0VDC | 66.0VDC |
Battery low Voltage Alarm | 21.0VDC | 21.0VDC | 42.0VDC | 21.0VDC | 42.0VDC |
Battery low Voltage Shutdown | 20.0VDC | 20.0VDC | 40.0VDC | 20.0VDC | 40.0VDC |
Protection | Over Charging, Over Temp, Over Battery voltage, Over load, short-circuit | ||||
PHYSICAL | |||||

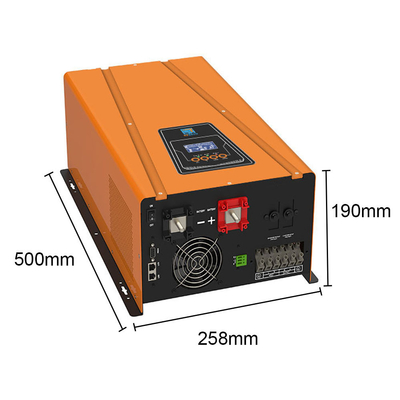

Dimension (D*W*H mm) | 390*222*178 | 500*258*190 | 574*345*197 | 574*345*197 | 574*345*197 |
Net Weight (kgs) | 15 | 25.2 | 24.6 | 34.4 | 33.8 |
ENVIRONMENT | |||||
Humidity | 5~95% Relative Humidity (Non-condensing) | ||||
Operating Temperature | -10℃ to 50℃ | ||||
Storage Temperature | -15℃ to 60℃ |
